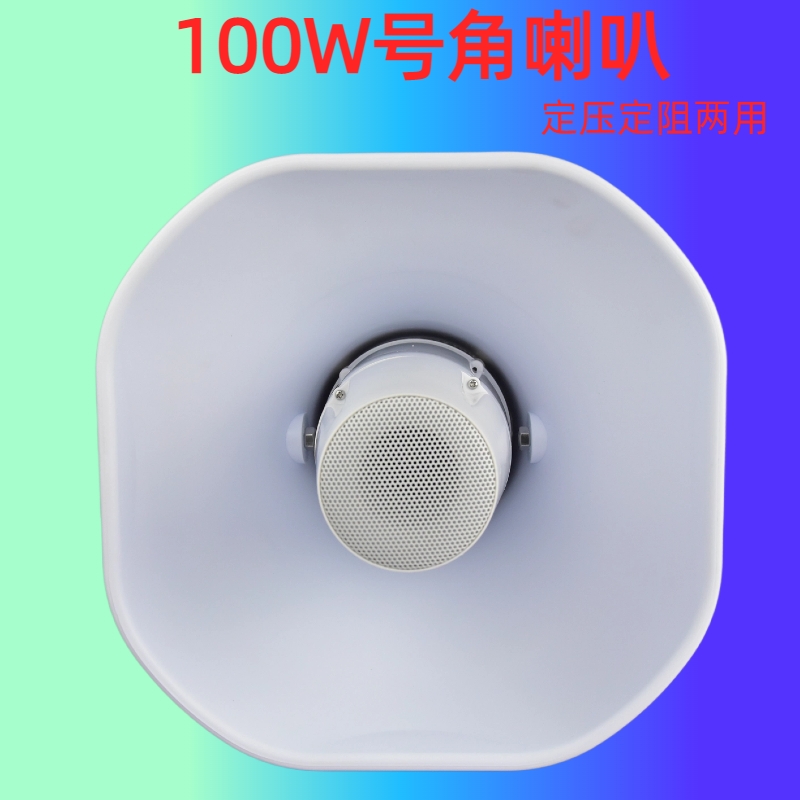

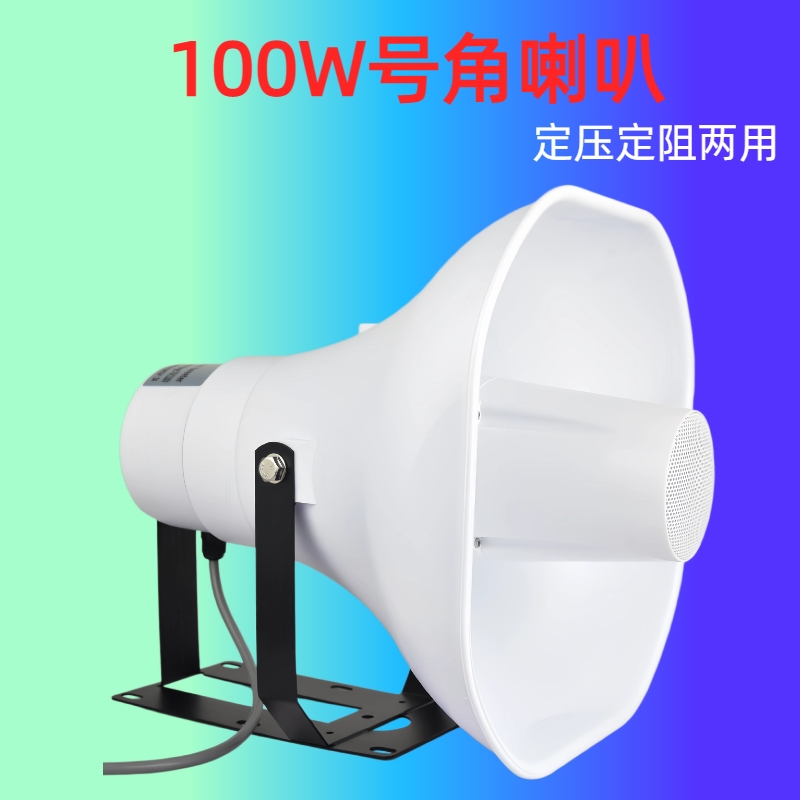

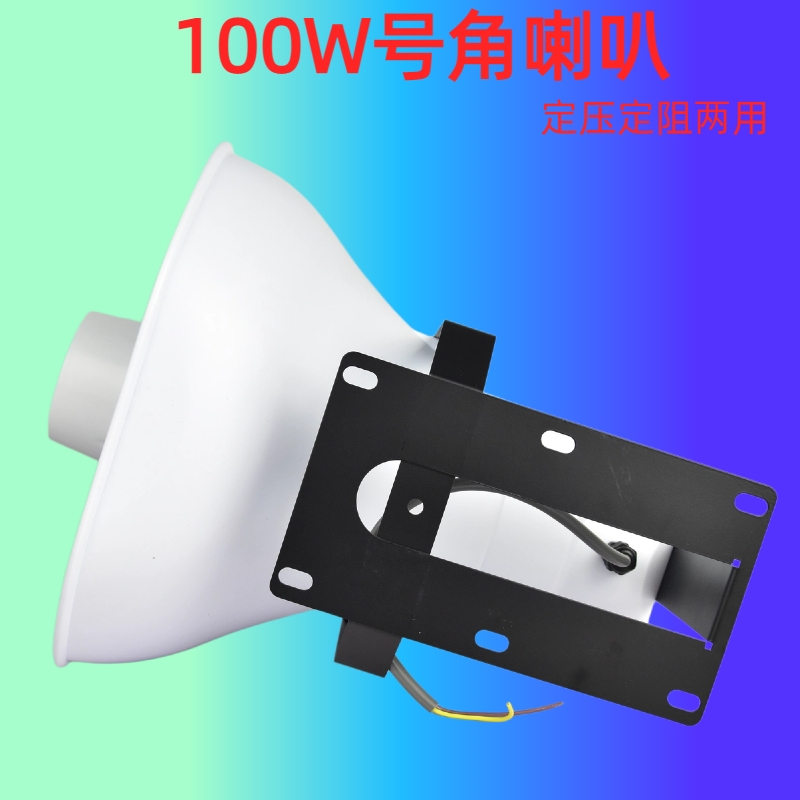

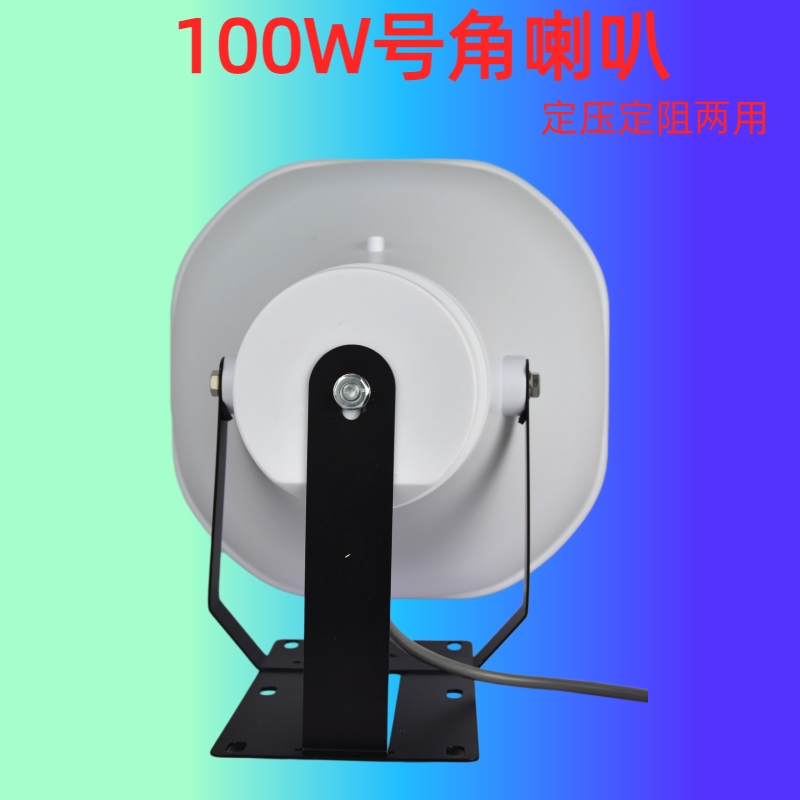

型号：KD-719-100w(黑白两色）（定压定阻可调）三位输入法
额定功率：100W
输入方式：70-100V/8Ω
喇叭单元：5寸80磁25芯低频+高音80磁25芯
最大声压级：136DB+3
灵敏度：85dB
频率响应：15K-20K HZ
半径距离：100M
语言清晰度(STIPA)：0.8
产品材质：ABS材质
外部尺寸：295*295*365mm
防风等级：≥12级
外壳防护等级：IP56
产品重量：3.48kg
内箱尺寸：310*310*390MM
一件重量：30Kg
一件8只
接线方式：COM黄 100V棕 8Ω蓝
①该产品比传统铝制号角、声音更加清晰明亮 ②不易损坏 ③带有定压定阻可调试、方便操作。
适用于飞机场、停车场、商场学校等场地
Engineering directional horn (voltage and resistance can be adjusted) Three-digit input method
Model: KD-719-100w (black and white) (adjustable constant pressure and resistance) three-position transfusion method
Frontal power: 100 W
Input mode: 70-100 V / 8E
Speaker Unit: 5 inch 80 magnetic 25 cores Low Frequency + High Acoustic 80 magnetic 25-core
Maximum sound pressure level: 136 DB + 3
Sensitivity: 85 dB
Frequency response: 15 K-20K HZ
Radius distance: 100 M
Speech Clarity (STIPA): 0.8
Product material: ABS material
External dimensions: 295 * 295 * 365 mm
Wind protection rating: ≥ 12
Housing protection class: IP56
Product weight: 3.48kg
Inner box size: 310 * 310 * 390MM
Weight: 30Kg
One of 8 animals
Wiring: COM Yellow 100 V Brown 8 Blue
1 The product is clearer and brighter than traditional aluminum horns, 2 is not easy to damage 3 has a fixed pressure and resistance that can be debugged and easy to operate.
Applicable to airports, parking lots, shopping malls, schools and other venues
产品功能特点优势：
功率与性能
1. 功率输出
- 额定功率为100W，能够提供足够的音量覆盖，适用于商场、工厂、学校等需要大范围声音传播的场所。
- 支持70V/110V定压输入，确保在长距离传输过程中信号的稳定性，减少功率损耗，保证声音质量。
2. 频率响应
- 频率响应范围为300 - 10000Hz，能够清晰地还原人声和大部分音乐的频率，使声音听起来自然、清晰。
- 灵敏度达到110dB，这意味着在输入较小功率时就能产生较大的声压级，具有较高的声音转换效率，节省能源。
声音传播特性
1. 定向传播
- 作为定向号角，能够将声音集中向特定方向传播，减少声音在非目标区域的扩散，避免声音干扰，适用于需要定向广播的场所，如车站、码头等。
2. 声音覆盖范围
- 广播覆盖半径可达100m，能够满足大面积场所的声音覆盖需求，无论是户外广场还是大型室内空间，都能实现有效的声音传播。
安装与使用
1. 安装便捷性
- 设计有便于安装的结构，可通过支架或其他安装方式固定在不同位置，安装过程简单快捷，节省安装时间和成本。
2. 操作简单
- 定压输入的方式使得设备在连接和操作上较为简单，不需要复杂的调试过程，易于使用和维护。
Product Features Advantages:
I. Power and Performance
1. Power Output
- The rated power is 100W, which can provide enough volume coverage, suitable for shopping malls, factories, schools and other places that require a wide range of sound transmission.
- Support 70V/110V fixed voltage input, to ensure the stability of the signal during long-distance transmission, reduce power loss and ensure sound quality.
2. Frequency Response
- Frequency response ranges from 300 - 10000Hz, which can clearly restore the frequency of human voice and most of music, making the sound sound sound natural and clear.
- Sensitivity of 110dB, which means that in the input of a smaller power can produce a larger sound pressure level, with a high sound conversion efficiency, saving energy.
1. Directional propagation
- As a directional horn, it can focus the sound propagation in a specific direction, reduce the spread of sound in non-target area and avoid sound interference, which is suitable for places that need directional broadcasting, such as stations, docks and so on.
2. Sound coverage
- Broadcast coverage radius up to 100m, can meet the sound coverage needs of large places, whether outdoor plaza or large indoor space, can realize effective sound transmission.
Installation and Use
1. Installation Convenience
- Designed with an easy-to-install structure, it can be fixed in different positions by means of brackets or other mounting methods, which makes the installation process simple and quick and saves installation time and cost.
2. Simple operation
- Constant pressure input method makes the equipment simpler in connection and operation, no need for complex debugging process, easy to use and maintain.
